Technical Spec - X-Series WiFi Switch and Socket
.jpg)
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)

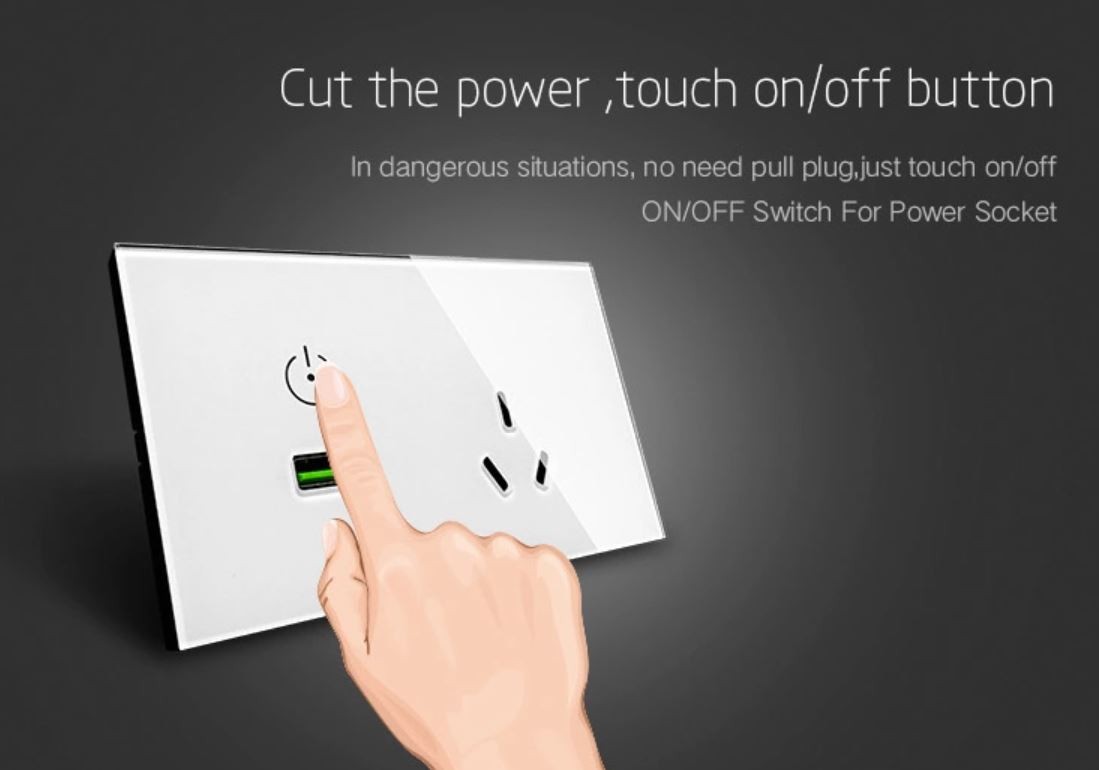

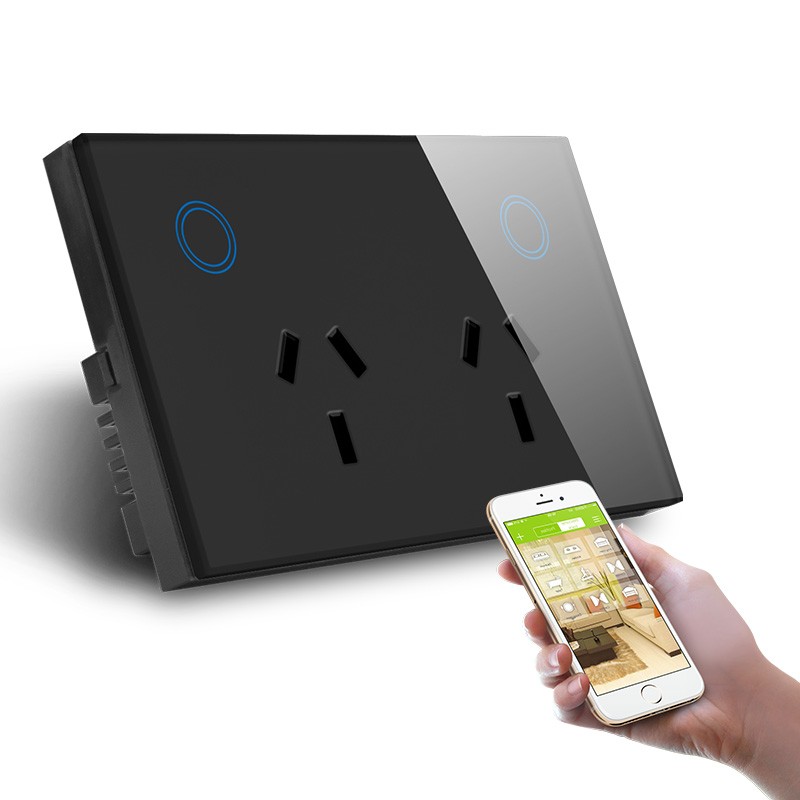

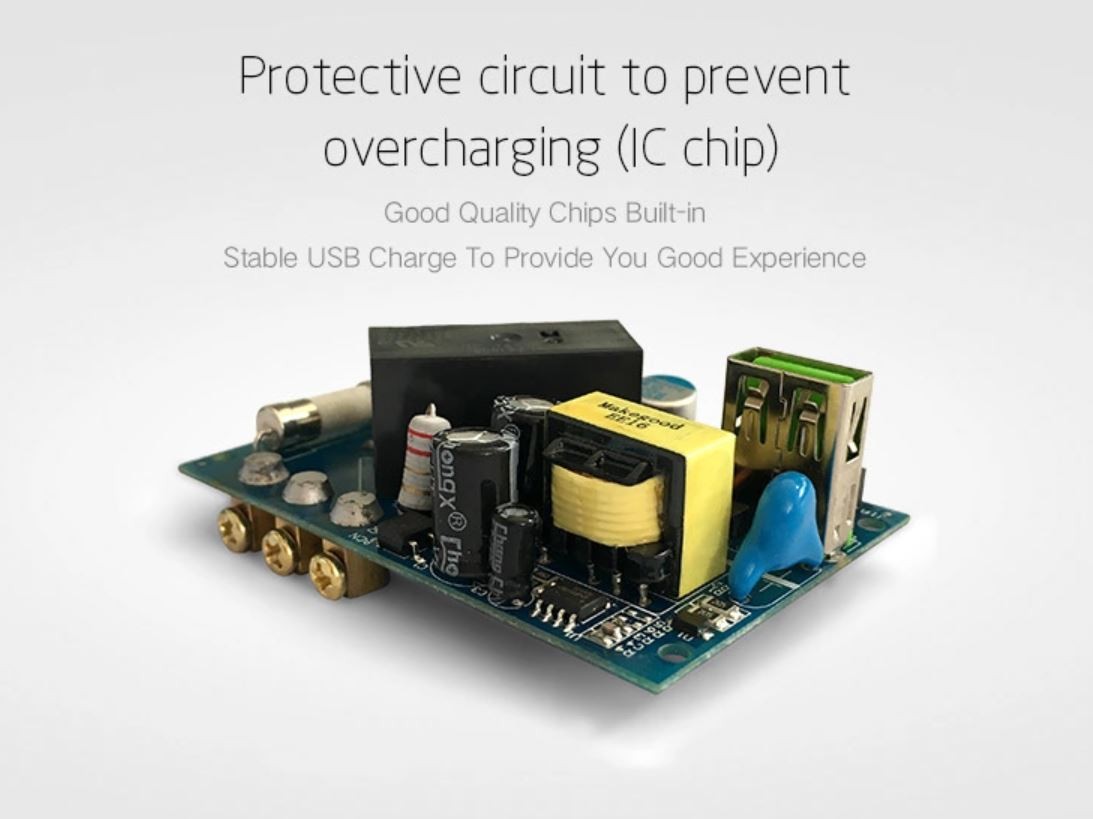

Features Phone App Control: Control from anywhere in the world; Support for both Android and IOS . Voice Control: Works with Alexa, Amazon and Google Home. 2.4G Network Timer / Scene Control: You can add and set the time to turn ON/OFF the light automatically. Real-time Feedback ON/OFF State. Crystal Glass Panel: resistant to fading and always look like a brand-new switch. Soft LED Blue Backlight: Indicate the position in darkness and easy to find. Capacitive Touch Sense: Sensitive touch control MCU Intelligent Chips: Smart, high-quality and more superior performance. AU Standard Smart Touch Switch - can be easily used as a replacement for conventional switches Safe: E-start, no sparking contacts. Applicable to all the common lamps.

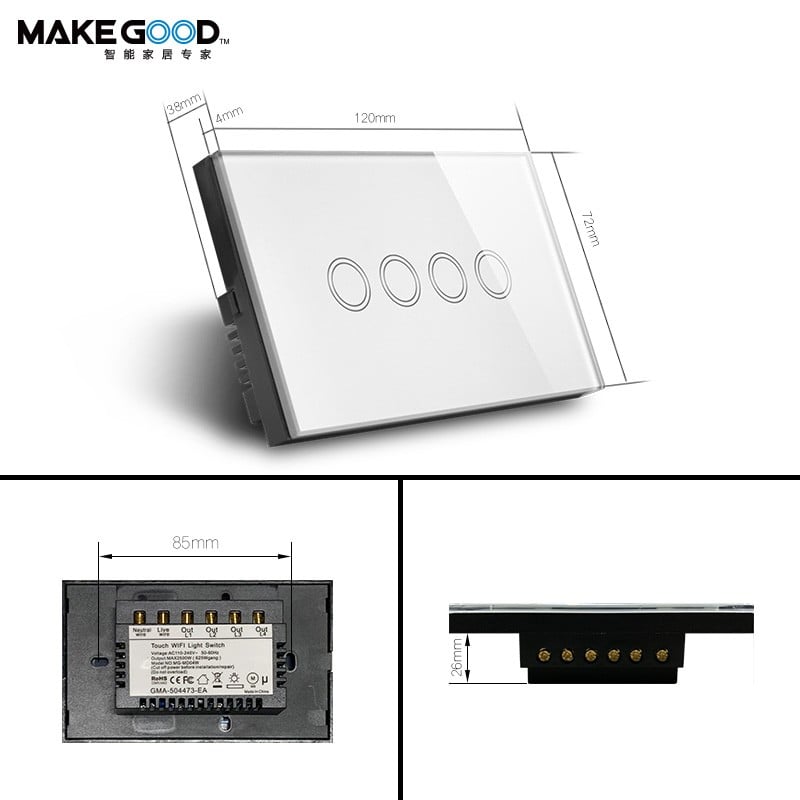

Technical Data Size 120 x 72 x 43 MMMax. Current 6AMax. Voltage 240VMechanical Life more than 100,000 timesPanel Material Crystal Toughened Glass PanelMax power 1000W /GangVoltage 110-240V AC /50Hz~60HzFrequency WIFI 2.4GHz, WPA/WPA2Transmission Protocol 802.1lb/g/nColors White, BlackAvailable Type 1 Gang, 2 Gang, 3 Gang, 4 GangCertification GMA-506386-EA
WiFi Set-Up Information 1 - Download the 'Smart life' from App Store or Google Play store. Make sure your mobile device is connected to 2.4 GHz WiFi network 2 - Launch 'Smart life' APP and create your account 3 - Press (+) on the top right hand corner 4 - Select "Switch (Wi-Fi) to add a device 5 - Then follow instructions for pairing the device to WiFi. Manual instructions provided with the device.
Technical Data Size 120 x 72 x 43 MMMax. Current 6AMax. Voltage 240VMechanical Life more than 100,000 timesPanel Material Crystal Toughened Glass PanelMax power 1000W /GangVoltage 110-240V AC /50Hz~60HzFrequency WIFI 2.4GHz, WPA/WPA2Transmission Protocol 802.1lb/g/nColors White, BlackAvailable Type 1 Gang, 2 Gang, 3 Gang, 4 GangCertification GMA-506386-EA
WiFi Set-Up Information 1 - Download the 'Smart life' from App Store or Google Play store. Make sure your mobile device is connected to 2.4 GHz WiFi network 2 - Launch 'Smart life' APP and create your account 3 - Press (+) on the top right hand corner 4 - Select "Switch (Wi-Fi) to add a device 5 - Then follow instructions for pairing the device to WiFi. Manual instructions provided with the device.
